Getting Started

Quick Start Guide

Creating a Basic Environment

from rtgym import RatatouGym

gym = RatatouGym(
   temporal_resolution=50,
   spatial_resolution=1,
)
gym.init_arena_map(shape='rectangle', dimensions=[100, 100])
_ = gym.arena.vis()

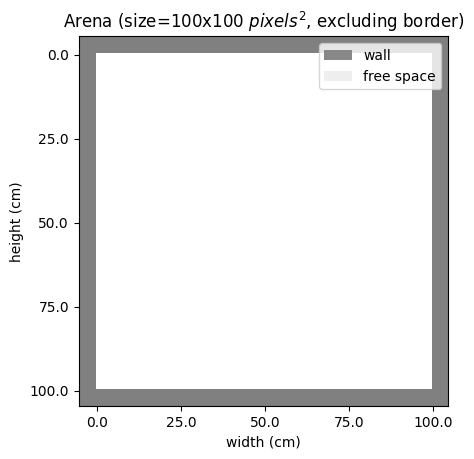

This will create a basic rectangular arena with a resolution of 1cm per pixel with 50ms per time step. The size of the arena is 100cm x 100cm. Visualize the arena:

Rectangular Room Example

Generating Your First Trial

Generate a navigation trial with your agent:

# Generate a trial with 1000 time steps
trial = gym.generate_trial(trial_length=1000)

# Get the agent's trajectory
trajectory = trial.get_trajectory()

# Print some basic information
print(f"Trial duration: {len(trajectory)} steps")
print(f"Starting position: {trajectory.x[0]:.2f}, {trajectory.y[0]:.2f}")
print(f"Ending position: {trajectory.x[-1]:.2f}, {trajectory.y[-1]:.2f}")

Accessing Neural Responses

RatatouGym provides biologically-inspired neural responses:

# Get spatial responses (place cells, grid cells, etc.)
spatial_responses = trial.get_spatial_responses()

# Get movement responses (head direction, velocity, etc.)
movement_responses = trial.get_movement_responses()

# Get all responses together
all_responses = trial.get_agent_responses()

print(f"Available spatial cell types: {list(spatial_responses.keys())}")
print(f"Available movement cell types: {list(movement_responses.keys())}")

Visualizing Results

Visualize your agent’s behavior and neural responses:

import matplotlib.pyplot as plt

# Plot the trajectory
plt.figure(figsize=(10, 5))

plt.subplot(1, 2, 1)
plt.plot(trajectory.x, trajectory.y, 'b-', alpha=0.7)
plt.plot(trajectory.x[0], trajectory.y[0], 'go', markersize=8, label='Start')
plt.plot(trajectory.x[-1], trajectory.y[-1], 'ro', markersize=8, label='End')
plt.title('Agent Trajectory')
plt.legend()
plt.axis('equal')

# Plot place cell responses
plt.subplot(1, 2, 2)
place_responses = spatial_responses['place_cell']
plt.imshow(place_responses.T, aspect='auto', cmap='hot')
plt.title('Place Cell Responses')
plt.xlabel('Time Steps')
plt.ylabel('Place Cells')

plt.tight_layout()
plt.show()

Common Use Cases

Training Machine Learning Models

RatatouGym is perfect for training spatial navigation models:

import torch
import torch.nn as nn

# Generate training data
trials = []
for i in range(100):  # Generate 100 trials
    trial = gym.generate_trial(trial_length=500)
    trials.append(trial)

# Extract features for training
trajectories = [trial.get_trajectory() for trial in trials]
responses = [trial.get_agent_responses() for trial in trials]

# Your training code here...

Comparing Different Arena Shapes

Study how environment shape affects navigation:

from rtgym.arena.arena_shapes import Circle, Rectangle, Triangle

shapes = ['circle', 'rectangle', 'triangle']
results = {}

for shape in shapes:
    arena = Arena(shape=shape, size=100)
    agent = Agent(arena=arena)
    gym = rtgym.RatatouGym(arena=arena, agent=agent)

    trial = gym.generate_trial(trial_length=1000)
    results[shape] = trial.get_trajectory()

# Compare navigation patterns across shapes
for shape, trajectory in results.items():
    plt.plot(trajectory.x, trajectory.y, label=shape, alpha=0.7)

plt.legend()
plt.title('Navigation Patterns by Arena Shape')
plt.show()

Next Steps

Now that you have RatatouGym running, explore these topics:

  1. Arena Customization: Learn about different arena shapes and how to create custom environments

  2. Agent Behavior: Understand how to configure agent movement patterns and preferences

  3. Sensory Systems: Dive deep into the neural response models

  4. Advanced Examples: Check out complex scenarios and research applications

For detailed information on each component, see the examples section and the full API documentation.

Troubleshooting

Common Issues

Installation Problems

If you encounter installation issues, try:

pip install --upgrade pip
pip install -e .
Import Errors

Make sure all dependencies are installed:

pip install numpy matplotlib torch scipy scikit-learn
Performance Issues

For large-scale experiments, consider:

  • Reducing trial length or number of neurons

  • Using batch processing for multiple trials

  • Leveraging GPU acceleration if available

Getting Help

  • Check the examples for more detailed usage patterns

  • Review the API documentation for specific function details

  • Open an issue on GitHub for bugs or feature requests

  • Join our community discussions for research questions
